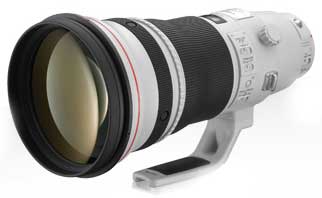

Canon EF 400mm f/2.8L IS II USM

• Specifications
• Reviews
• Sample Images
• Initial launch information.

Available from: Amazon.com | Amazon.co.uk | B&H | Adorama

Lens specifications

Focal Length & Maximum Aperture	400mm 1:2.8
Lens Construction	16 elements in 12 groups (Including drop-in rear filter, Fluorite: G2 and G4, UD Lens: None)
Diagonal Angle of View	6°10'
Focus Adjustment	Inner focusing system, with focusing cam
Closest Focusing Distance	2.7m / 8.86 ft.
Filter Size	52mm Drop-In
Max. Diameter x Length, Weight	6.4" x 13.5", 135.8 oz. / 163.0 x 343.0mm, 3850g

A quick guide to MTF charts (which only measure contrast and resolution. Canon's guide to their MTF charts) Black lines reflect lens performance at widest aperture. Blue lines show the performance at f/8 Thick lines indicate lens contrast Thin lines indicate lens resolution Dashed lines: Lens performance with meridional lines. Solid lines: Lens performance with sagittal lines Closer sagittal and meridional chart lines indicate more 'natural' out of focus areas. Remember that MTF charts are good for comparing similar lenses, so comparing ones from the 14mm f2.8L and 300mm 2.8L won't tell you much at all, whilst comparing the EF14 2.8L with the EF14 2.8L II will show meaningful differences. Note that other manufacturers may have different ways of displaying such information that may or may not match up with the Canon figures.

Which 400mm? - a list of all versions

Canon EF 400mm
Attribute	f/2.8 USM	f/2.8 II USM	f/2.8 IS USM	f/2.8 IS II USM	f/2.8 IS III USM	f/4 DO IS USM	f/5.6 USM	f/4 DO IS II USM
Key features
Full-frame compatible	Yes
Image stabilizer	No		Yes				No	Yes
Ultrasonic Motor	Yes
L-series	Yes
Diffractive Optics	No					Yes	No	Yes
Technical data
Aperture (max-min)	f/2.8-f/32					f/4-f/32	f/5.6-f/32	f/4-f/32
Construction	9 groups / 11 elements		13 groups / 17 elements				6 groups / 7 elements	12 groups /18 elements
Aperture blades	8			9		8		9
Closest focusing distance	4m		3m	2.7m	2.5m	3.5m		3.3m
Max. magnification	0.11x		0.15x	0.17x		0.12x	0.11x	0.13x
Diagonal viewing angle	6 °
Physical data
Weight	13.44 lb / 6.1 kg	13.03 lb / 5.91 kg	11.83 lb / 5.37 kg	8.48 lb / 3.85 kg	6.26 lb / 2.84 kg	4.27 lb / 1.94 kg	2.8 lb / 1.25 kg	2.1 kg
Maximum diameter	6.57" / 167mm		6.41" / 163mm			5.03" / 128mm	3.54" / 90mm/	5.04" /128mm
Length	13.70" / 348mm		13.74" / 349mm	13.50" / 343mm		9.16" / 232.7mm	10.09" / 256.5mm	9.16" / 232.7mm
Filter diameter	48mm		52mm drop-in filter				77mm	52mm drop-in
Accessories
Lens hood	ET-161B II		ET-155	ET-155 (WII)	ET-155 (WIII)	ET-120	Built-in	ET120 (WII)
Case			400	400C	400E	400B		400D
Retail information
Release date	April 1991	March 1996	Sept. 1999	Aug. 2011	Sept. 2018	Dec. 2001	May 1993	Sept. 2014

EF 400mm f/2.8L IS II USM reviews and articles

• Canon UK / US Information Page
• Amazon
• Northlight Images
• Canon CPN article
• Fred Miranda
• Lens Tip
• Digital Picture
• PhotoZone
• SLR Gear
• Lens Review
• ePhotozine
• Blog - Grant Atkinson

Written a review? Contact us and we'll add it to the list.

Sample images

Product launch

August 2010 – Canon enhances its premium L-series with the launch of the new EF 300mm f/2.8L IS II USM and EF 400mm f/2.8L IS II USM.

Both high quality super-telephoto lenses are designed to meet the demands of professional photographers. Offering optical excellence and consistently high performance, the new lenses combine super-telephoto focal lengths, fast aperture and outstanding image quality, providing photographers with reliability and exceptional results.

Succeeding the well-respected EF 300mm f/2.8L IS USM and the EF 400mm f/2.8L IS USM, both new models will appeal to nature, wildlife and sports photographers. Each features a completely redesigned optical system and the latest iteration of Canon’s original Image Stabilizer (IS) technology, while an all-new magnesium alloy construction and titanium components ensure the designs are both robust and lightweight. The EF 400mm f/2.8L IS II USM is the lightest lens in its class*, offering unrivalled mobility due to an incredible 28% reduction in weight (1.5KG) compared to its predecessor, while the EF 300mm f/2.8L IS II USM offers photographers an 8% weight reduction.

Ultra high performance optics
Manufactured using the very best optical components, the new EF 300mm f/2.8L IS II USM and EF 400mm f/2.8L IS II USM mark a significant step forward for Canon’s L-series, which is already renowned for its outstanding quality. Both lenses feature 16 elements in 12 different groups, using high performance fluorite lens elements that correct chromatic aberration to deliver high resolution and high contrast shots of the best possible quality – allowing photographers to capture images rich with edge-to-edge detail.

The optical elements also feature Canon’s latest Super Spectra Coatings, optimised for both the position and type of each lens element. A SubWavelength Structure Coating (SWC), which uses microscopic cone-shaped structures smaller than a wavelength of visible light, reduces ghosting caused by light bouncing back from the imaging sensor. Fluorine coating is also used on the front and rear elements of the lenses, repelling dust and dirt for clearer shots. The coating is also water repellent, keeping the front element free of water marks and smearing by ensuring water runs off the lens quickly.

New, improved IS and rapid AF
Both models feature Canon’s new Image Stabilizer system, providing outstanding results when the photographer is moving around and when capturing moving subjects. A 4-stop advantage offers greater image quality during handheld shooting, allowing users to shoot at speeds up for four times slower than normally required with minimal additional blur. Operation of IS mode 2 has been improved when shooting panning motion and a new third IS mode has been added, assisting users when quickly switching between subjects by activating the IS unit only during exposure.

Both lenses offer a constant f/2.8 aperture, allowing photographers to shoot at faster shutter speeds and capture clear shots of fast-moving subjects. The wide aperture also allows users to creatively isolate their subjects from the background, with a nine-blade circular iris creating dramatic and striking background blur that instantly adds beauty to an image.

Fast, quiet Auto Focusing (AF) is provided by a ring-type USM, new dedicated AF algorithms and a new high-speed CPU, which offer quick and accurate focusing during shooting. Photographers can also utilise full-time manual focusing functionality, which enables the adjustment and fine-tuning of focus even when the AF system is activated, providing even greater control over image capture. A new Power Focus mode aids focusing during video shooting, allowing the photographer to smoothly adjust focus during filming by twisting the focus recall ring.

All-new premium L-series design
Developed in line with Canon’s philosophy for the elite L-series, both the
EF 300mm f/2.8L IS II USM and EF 400mm f/2.8L IS II USM boast a refined design that reflects their status as market-leading, benchmark lenses. Both feature a new design layout, with carefully-positioned controls that improve operation in everyday use. The AF stop buttons are now location-adjustable, improving ergonomics by allowing users to custom-select the position of the lens grip, where the AF stop buttons are located.

A choice of dedicated tripod mounts provides added flexibility, allowing photographers to use a long or short foot suitable for monopods or tripods. A new rotational mechanism for the tripod collar also provides a smoother movement when turning the lens from portrait to landscape orientation. In addition, both models feature a new high quality exterior texture, while a new shade of white casing indicates the new advanced design and higher precision that each lens offers. A new Kensington-type wire security lock has also been added, allowing photographers to keep their lenses secure during location-based shoots.
A robust weatherproof design makes both lenses suitable for use in extreme conditions when paired with a weatherproof EOS body.

Complementary, high quality lens extenders
Both new models are compatible with the new set of Canon lens extenders designed for L-series super-telephoto lenses – the Extender EF 1.4x III and Extender EF 2x III. Manufactured to complement the new optical systems featured in both lenses, the Extender EF 1.4x III and Extender EF2x III will allow professionals to instantly extend the focal length of either lens by 1.4x or 2x respectively – enabling the capture of high quality, detailed images of subjects that may typically be beyond reach.

* As of August 2010
