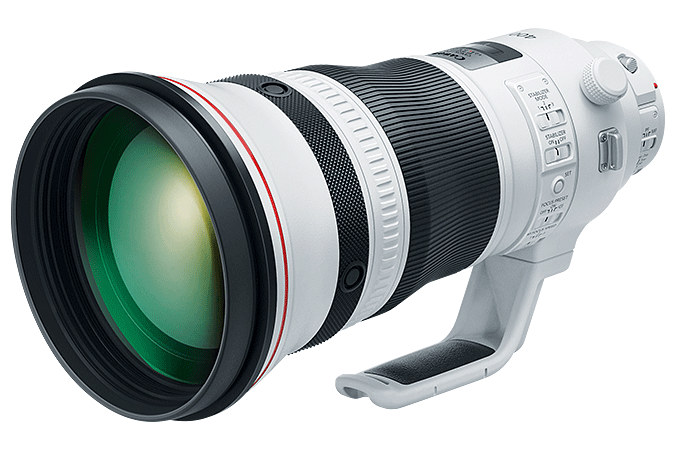

Canon EF 400mm f/8L IS ii USM super telephoto lensCanon EF 400mm f/2.8L IS III USM

Overview

The third version of the 400/2.8L with IS announced September 2018

Optically re-designed and with reduced flare and ghosting thanks to Super Spectra Coating (SSC) and Air Sphere (ASC), a shorter minimum focusing distance and additional comfort and portability. Reduced weight from 3850g to 2840g

Available from: Amazon.com | Amazon.co.uk | B&H | Adorama

Lens specifications

Focal Length & Maximum Aperture 400mm 1:2.8
Lens Construction 17 elements in 13 groups
Diagonal Angle of View 6°10'
Focus Adjustment Inner focusing system, with focusing cam
Closest Focusing Distance 2.5m / 8.2 ft.
Filter Size 52mm Drop-In
Max. Diameter x Length, Weight 6.4" x 13.5", 135.8 oz. / 163.0 x 343.0mm, 2840g

MTF charts

A quick guide to MTF charts (which only measure contrast and resolution. Canon's guide to their MTF charts)

Black lines reflect lens performance at widest aperture.
Blue lines show the performance at f/8

Thick lines indicate lens contrast
Thin lines indicate lens resolution

Dashed lines: Lens performance with meridional lines.
Solid lines: Lens performance with sagittal lines

Closer sagittal and meridional chart lines indicate more 'natural' out of focus areas.

Remember that MTF charts are good for comparing similar lenses, so comparing ones from the 14mm f2.8L and 300mm 2.8L won't tell you much at all, whilst comparing the EF14 2.8L with the EF14 2.8L II will show meaningful differences. Note that other manufacturers may have different ways of displaying such information that may or may not match up with the Canon figures.

Which 400mm? - a list of all versions

Canon EF 400mm
Attribute f/2.8 USM f/2.8 II USM f/2.8 IS USM f/2.8 IS II USM f/2.8 IS III USM f/4 DO IS USM f/5.6 USM f/4 DO IS II USM
Key features
Full-frame compatible Yes
Image stabilizer No Yes No Yes
Ultrasonic Motor Yes
L-series Yes
Diffractive Optics No Yes No Yes
Technical data
Aperture (max-min) f/2.8-f/32 f/4-f/32 f/5.6-f/32 f/4-f/32
Construction 9 groups / 11 elements 13 groups / 17 elements 6 groups / 7 elements 12 groups /18 elements
Aperture blades 8 9 8 9
Closest focusing distance 4m 3m 2.7m 2.5m 3.5m 3.3m
Max. magnification 0.11x 0.15x 0.17x 0.12x 0.11x 0.13x
Diagonal viewing angle 6 °
Physical data
Weight 13.44 lb / 6.1 kg 13.03 lb / 5.91 kg 11.83 lb / 5.37 kg 8.48 lb / 3.85 kg 6.26 lb / 2.84 kg 4.27 lb / 1.94 kg 2.8 lb / 1.25 kg 2.1 kg
Maximum diameter 6.57" / 167mm 6.41" / 163mm 5.03" / 128mm 3.54" / 90mm/ 5.04" /128mm
Length 13.70" / 348mm 13.74" / 349mm 13.50" / 343mm 9.16" / 232.7mm 10.09" / 256.5mm 9.16" / 232.7mm
Filter diameter 48mm 52mm drop-in filter 77mm 52mm drop-in
Accessories
Lens hood ET-161B II   ET-155 ET-155 (WII) ET-155 (WIII) ET-120 Built-in ET120 (WII)
Case     400 400C 400E 400B   400D
Retail information
Release date April 1991 March 1996 Sept. 1999 Aug. 2011 Sept. 2018 Dec. 2001 May 1993 Sept. 2014

EF 400mm f/2.8L IS II USM reviews and articles

  • Canon UK / US Information Page
  • Amazon
  • Northlight Images
  • Canon CPN article
  • Fred Miranda
  • Lens Tip
  • Digital Picture
  • PhotoZone
  • SLR Gear
  • Lens Review
  • ePhotozine
Written a review? Contact us and we'll add it to the list.

Sample images

None available at present.

Product launch - Sept. 2018

Canon Redesigns Premium L-Series Super-Telephoto Lenses With Its New EF 400MM F/2.8L IS III USM AND EF 600MM F/4L IS III USM Lenses
New Compact and Lightweight EF Super-Telephoto Lenses Are Well Suited for a Variety of Photographers’ Needs

MELVILLE, N.Y., September 5, 2018 – Most professional photographers need to carry multiple lenses in their camera bags. Helping to lighten their load, Canon U.S.A. Inc., a leader in digital imaging solutions, introduces two new super-telephoto lenses, the EF 400mm f/2.8L IS III USM and EF 600mm f/4L IS III USM. Both lenses possess a dramatic weight reduction and high-image quality, making it ideal for shooters to easily transport and capture images during action-driven scenarios, such as sports and wildlife. Both lenses now hold the title of world’s lightest in their respective focal length*. The weight of the EF 400mm f/2.8L IS III USM and EF 600mm f/4L IS III USM lenses has been reduced by 2.2 lbs. (more than 25 percent) and 1.9 lbs. (more than 20 percent) respectively.

“When developing updates to some of Canon’s most popular legacy lenses, one common question that is asked by photographers was ‘can they be lighter,’” said Kazuto Ogawa, president and chief operating officer, Canon U.S.A., Inc. “The significant reduction of weight in these two lenses addresses this customer need and delivers thoughtfully designed, high-quality optics .”

The new lenses are must-haves for advanced and professional photographers shooting wildlife, aviation, sports and news with Canon’s new EOS R full-frame mirrorless camera (with use of one of the three new Canon mount adapters), as well the EOS 1D and 5D series of DSLR Cameras. Both lenses feature two of Canon’s most advanced propriety lens technologies - Air Sphere Coating (ASC) and Super Spectra Coating (SSC), helping to reduce flaring and ghosting, and suppressing the reflection of light, leading to vivid images. These updated lenses inherit the excellent overall build-quality and ruggedness photographers have come to expect and admire from the Canon EF L series of lenses. In addition, the minimum focusing distance has been improved for both lenses, from 2.7m to 2.5m (8.8ft to 8.2ft) for the EF 400mm f/2.8L IS III USM and 4.5m to 4.2m (14.8ft to 13.8ft) for the EF 600mm f/4L IS III USM.

Additional noteworthy features of the lenses include:

  • Upgraded Optical Image Stabilization from three-and-a-half stops to five shutter speed stops1 of correction over the previous f/2.8 lens
  • Improved, flexible focus control with a customizable electronic-focus ring
  • Two fluorite lenses and one super UD lens, helping to provide high image quality
  • Circular nine-blade aperture
  • 17 lens elements in 13 groups
  • Heat-shielding paint helps prevent lens temperature from rising during excessive exposure to sun
  • Fluorine coating on front and rear optical elements, helps to reduce smears and fingerprints
  • Inner focusing system with Ring Ultrasonic Motor

Availability and Pricing

The Canon EF 400mm f/2.8L IS III USM is scheduled to begin shipping in December 2018 with an estimated retail price of $11,999. The Canon EF 600mm f/4L IS III USM is scheduled to begin shipping in December 2018 for an estimated retail price of $12,999. For additional information regarding the lenses predecessors please visit, visit usa.canon.com.

Used Canon Lenses
• UK: MPB | Park
• USA: B&H | Adorama
